GRADE: 8811A
Physical Properties | Specifications | Testing Method |

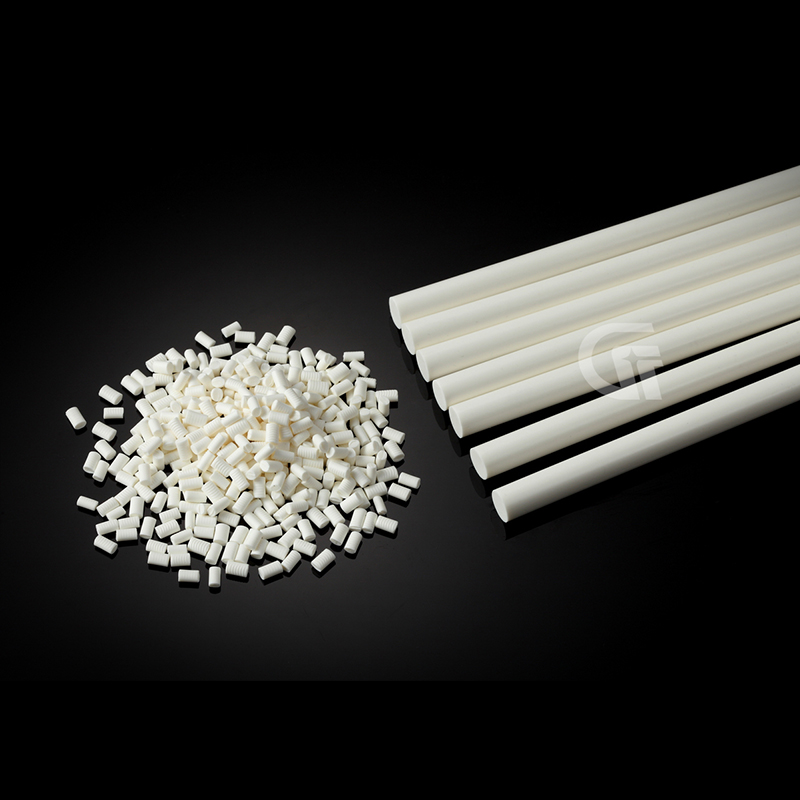

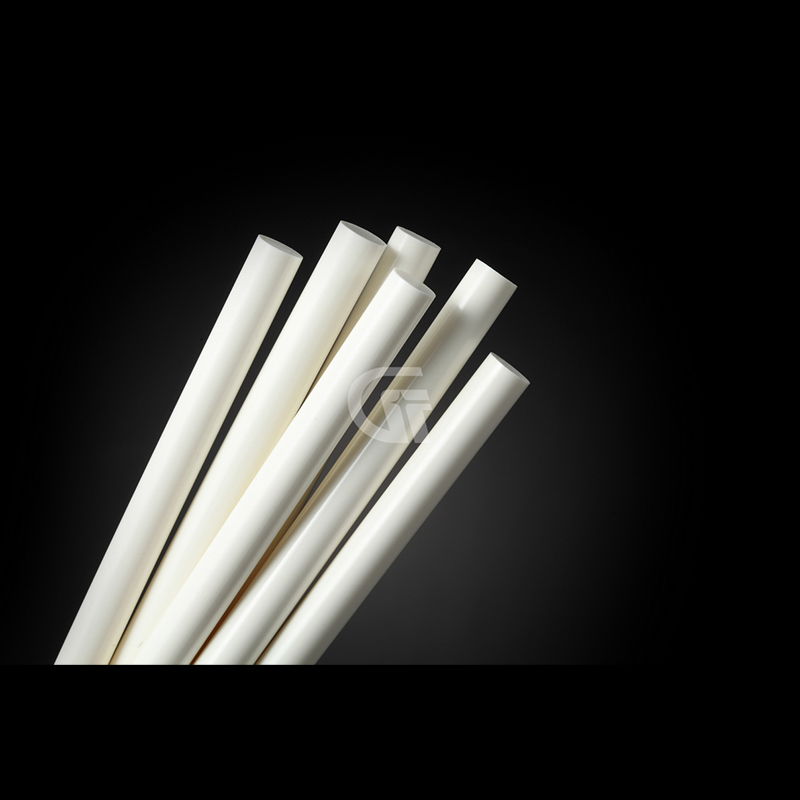

Appearance: | Rod | Visual |
Color: | White | Visual |
Diameter: | 11.3 ± 0.3 | Caliper |
Viscosity (180 ℃) | 6000 ± 2500 | Brookfied LVF |
(160 ℃) | 9000 ± 2500 | Brookfied LVF |
Softening point: | 150 ± 10 | Globe |
Opening time(S): | 13-17 | JISK-6730 |
Tensile strength (Mpa): | 12 | ASTM D412-98 Method A |
Shear strength (Mpa): | 12.5 | |
Breakdown voltage (KV) | > 50.0 | ASTM D149-97a method A |
Dielectric strength (kv/ mm) | > 10.2 | ASTM D149-97a method A |
Volume resistivity (Ω.cm) | 4X1014 | ASTM D257-99 |
Permittivity | 2.90 | |
Dielectric loss factor | 0.0042 | |
Operating temperature (℃): | 180~200 | |
Flame retardant grade: | 94V-0 | UL certification E308522 |
Applications: | Bonding of electronic and electrical equipment Anti-vibration fixing of electronic parts on circuit board Insulation and fixing of electronic appliance Adhesion and fixing of cold and flame retardant equipment |
